Introduction-
DC Connector for CCTV: Two terminal DC connectors play a crucial role in CCTV systems by providing a reliable and efficient power supply to cameras and other components.
DC Power Plug/Connector is most commonly seen power connector used to power on CCTV System equipment. DC connectors are introduced to world in mid-20’s, And have evolved in terms of appearance, sizes, and applications. DC connectors gained much popularity in daily used home appliance’s, electronic products, Audio devices, CCTV camera systems. In todays time 9 out of 10 electronic devices comes with DC power connector.
Very simple plug in plug out designed for specific devices, with specific current and voltage ratings. DC connector designed to handle specific voltage and current requirements-
- Maximum current not greater than 5 A. (Typical value- 2 A)
- Maximum Operating Voltage up to 48 V. (Typical value- 12 V)
Table of Contents
Type of DC connector for CCTV system-

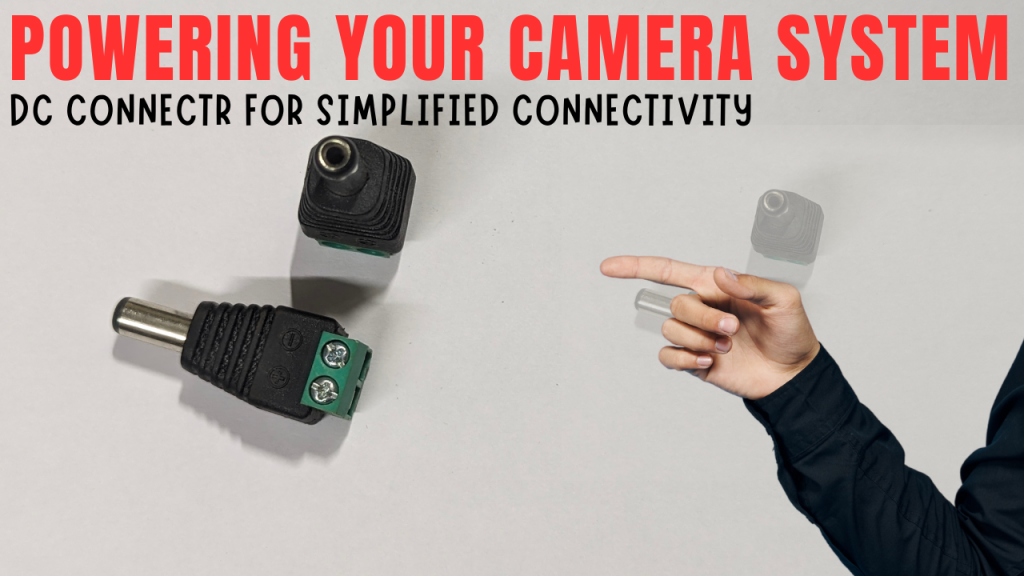

The most common type of connector we use is Barrel Connector, cylindrical in shape. As you can see in featured image, it consist of outer barrel and a center pin. the most common size of connecter is 5.5mm outside diameter and 2.1mm inside diameter.
Material- Plastic construction except the metal contacts, and strain relief. This 2.1 x 5.5mm Power Plug features one power connector end DC plug male to another end terminal for CCTV camera connected. It measures approx. 1.5″ long, 0.55″ wide, 0.5″ thick.
CCTV Hardware that uses DC Power connector
- Digital Video Recorder and Network Video Recorder(12V 2A)
- Analog and Non PoE CCTV Camera (12V 2A)
- Non-PoE/PoE Network Switch(Non-Poe: 12V 2A, PoE: 48V 5A)
Significance of DC connector for CCTV System-
- Power Delivery: DC connectors transmit electrical power from the power source (e.g., a power adapter or battery) to the CCTV camera. This power is essential for the camera’s operation, including image capture, processing, and transmission.
- Connection Security: A secure connection between the DC connector and the camera is important to prevent power interruptions or short circuits, which can lead to system failures or damage to CCTV camera.
- Versatility: DC connectors come in various types and sizes, allowing for compatibility with different camera models and power sources. This versatility ensures that CCTV systems can be customized to meet specific needs
- Ease of Installation and Maintenance: DC connectors are generally easy to install and maintain, making it convenient to set up and troubleshoot CCTV systems.
- Reliability: High-quality DC connectors are designed to be durable and reliable, ensuring a long service life and minimizing downtime.
How to connect DC PIN to Camera- Connection Diagram?
DC pin connections are very simple. As you can see in Connection diagram provided above. DC Pin has two terminals one is positive terminal and another one is negative terminal. Cross connections are not allowed in DC pin connectivity. DC Pins are comes with two configurations Male connector and Female connector.
What happen if we cross connect the connection?
Avoid cross connections, this results in short circuit. and potentially harmful for the devices if they do not have short circuit protections. hardware my get damaged. Generally power supply comes with short circuit protection so if cross connection happens power supply trips and protect the device from possible damage.
Female connector is always at receiving end of the CCTV camera, or any other devices that supports DC IN. Similarly Male connector is always at source end.
In summary
[DC connector for CCTV] DC connectors are essential components of CCTV systems that enable the efficient and reliable operation of cameras and other equipment. By choosing the right type of DC connector for your CCTV system, you can ensure optimal performance and minimize potential issues.
